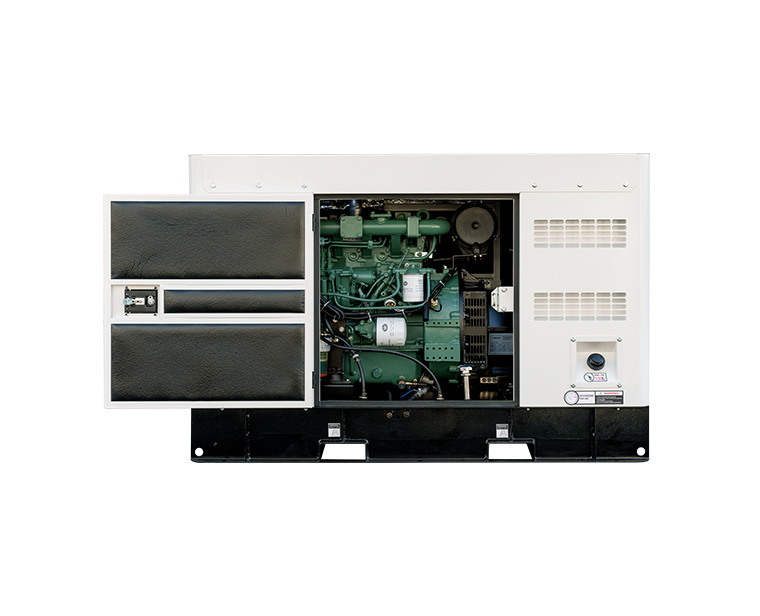

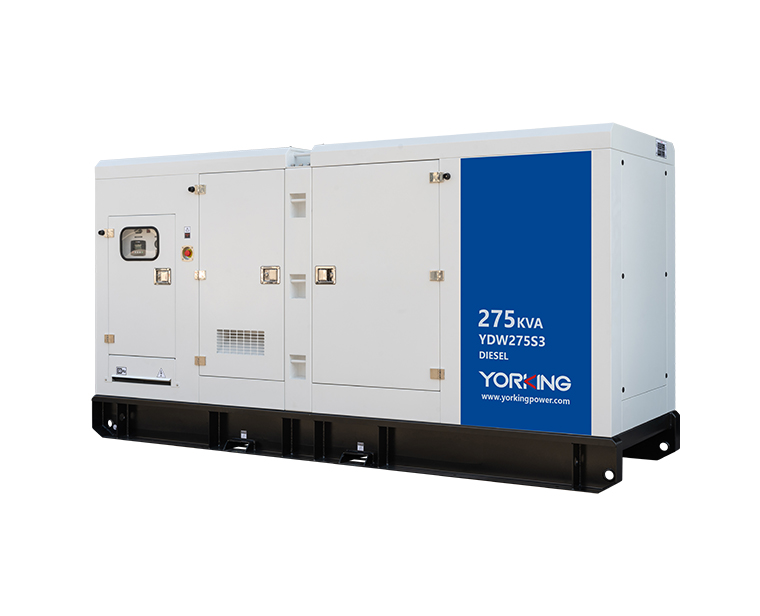

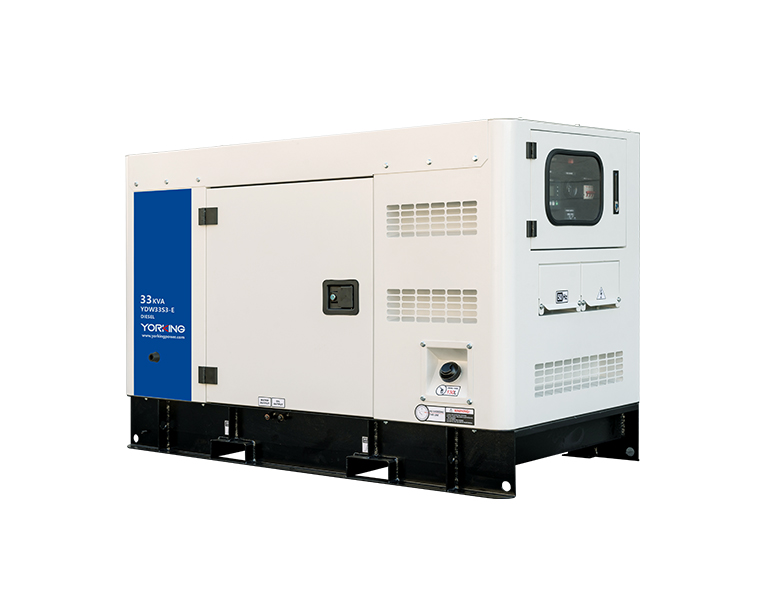

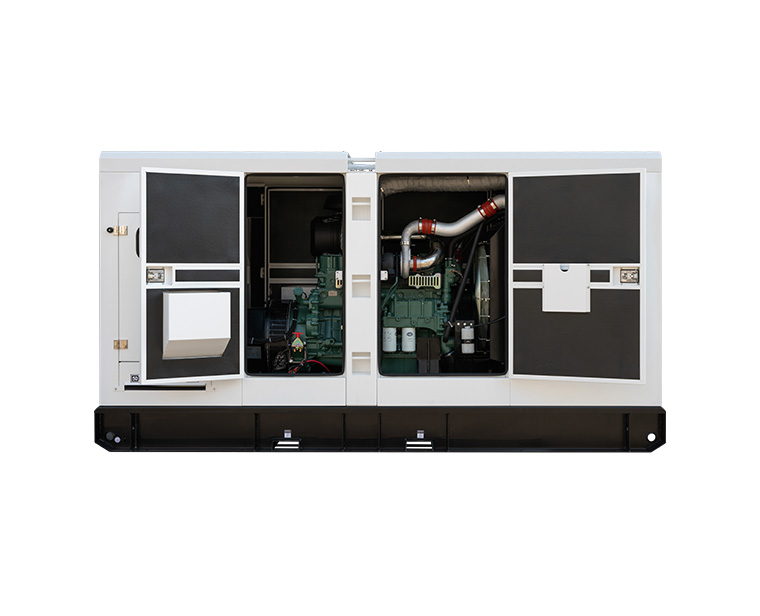

工业用柴油发电机组
锡柴系列 12-440KVA
锡柴隶属一汽解放汽车有限公司，拥有超过60年的柴油机制造经验。锡柴发动机以高性能、低排放和可靠性闻名，广泛应用于卡车及非道路设备。
优能锡柴系列发电机组功率覆盖12-440kVA，专为工业、建筑及应急备用电源场景打造，能在严苛环境下提供持续稳定的电力输出，满足多样化需求。
| 机组型号 | 主用功率 | 备用功率 | 发动机 | 电机 | 外形尺寸(LxWxH)(MM) | ||||
| kVA | kW | kVA | kW | 型号 | 调速方式 | 型号 | 静音型 | ||
| 单相 | |||||||||
| YDW13E/S-E/S | 12 | 12 | 13 | 13 | 4DW81-23D | M | Y164D/1P | 1760*850*1150 |  YDW13E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW18E/S-E/S | 16 | 16 | 18 | 18 | 4DW91-29D | M | Y184ED/1P | 1890*900*1150 | YDW18E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW22E/S-E/S | 20 | 20 | 22 | 22 | 4DW92-35D | M | Y184EF/1P | 1950*900*1150 | YDW22E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW26E/S-E/S | 24 | 24 | 26 | 26 | 4DW92-39D | M | Y184G/1P | 2270*900*1150 | YDW26E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| 三相 | |||||||||
| YDW17E3/S-E3/S3 | 15 | 12 | 17 | 13 | 4DW81-23D | M | Y164D | 1760*850*1150 | YDW17E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW22E3/S-E3/S3 | 20 | 16 | 22 | 18 | 4DW91-29D | M | Y184ED | 1890*900*1150 | YDW22E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW28E3/S-E3/S3 | 25 | 20 | 28 | 22 | 4DW92-35D | M | Y184EF | 1950*900*1150 | YDW28E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW33E3/S-E3/S3 | 30 | 24 | 33 | 26 | 4DW92-39D | M | Y184G | 1950*900*1150 | YDW33E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW44E3/S-E3/S3 | 40 | 32 | 44 | 35 | 4DX21-53D | M | Y184J | 2300*980*1200 | YDW44E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW55E3/S-E3/S3 | 50 | 40 | 55 | 44 | 4DX22-65D | M | Y224D | 2300*980*1200 | YDW55E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW66E3/S-E3/S3 | 60 | 48 | 66 | 53 | 4DX23-78D | M | Y224E | 2450*980*1200 | YDW66E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW75E3/S-E3/S3 | 68 | 54 | 75 | 59 | 4110/125Z-09D | E | Y224F | 2520*1050*1390 | YDW75E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW100E3/S-E3/S3 | 90 | 72 | 100 | 80 | CA4DF2-12D | E | Y274CS | 2610*1100*1440 | YDW100E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW110E3/S3 | 100 | 80 | 110 | 88 | CA6DF2D-14D | E | Y274C | 2950*1100*1700 | YDW110E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW138E3/S3 | 125 | 100 | 138 | 110 | CA6DF2-17D | E | Y274DS | 2950*1100*1700 | YDW138E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW165E3/S3 | 150 | 120 | 165 | 132 | CA6DF2-19D | E | Y274FS | 3150*1130*1750 | YDW165E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW206E3/S3 | 188 | 150 | 206 | 165 | CA6DL1-24D | E | Y274G | 3650*1220*1950 | YDW206E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW248E3/S3 | 225 | 180 | 248 | 198 | CA6DL2-27D | E | Y274J | 3650*1220*1950 | YDW248E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW275E3/S3 | 250 | 200 | 275 | 220 | CA6DL2-30 | E | Y274K | 3650*1220*1950 | YDW275E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW344E3/S3 | 313 | 250 | 344 | 275 | CA6DM2J-39D | E | Y4ES | 4000*1450*2150 | YDW344E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW371E3/S3 | 338 | 270 | 371 | 297 | CA6DM2J-41D | E | Y4FS | 4000*1450*2150 | YDW371E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW413E3/S3 | 375 | 300 | 413 | 330 | CA6DM3J-48D | E | Y4F | 4140*1500*2200 | YDW413E3&S3 Technical Data-FAWDE-Yorking.pdf |
| 机组型号 | 主用功率 | 备用功率 | 发动机 | 电机 | 外形尺寸(LxWxH)(MM) | ||||
| kVA | kW | kVA | kW | 型号 | 调速方式 | 型号 | 静音型 | ||
| 单相 | |||||||||
| YDW17E/S-E/S | 15 | 15 | 17 | 17 | 4DW81-28D | M | Y164D/1P | 1760*850*1150 | YDW17E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW24E/S-E/S | 22 | 22 | 24 | 24 | 4DW91-38D | M | Y184ED/1P | 1890*900*1150 | YDW24E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW28E/S-E/S | 25 | 25 | 28 | 28 | 4DW92-42D | M | Y184EF/1P | 1950*900*1150 | YDW28E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW33E/S-E/S | 30 | 30 | 33 | 33 | 4DW93-50D | M | Y184G/1P | 2270*900*1150 | YDW33E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| 三相 | |||||||||
| YDW22E3/S-E3/S3 | 19 | 15 | 22 | 17 | 4DW81-28D | M | Y164D | 1760*850*1150 | YDW22E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW30E3/S-E3/S3 | 27 | 22 | 30 | 24 | 4DW91-38D | M | Y184ED | 1890*900*1150 | YDW30E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW34E3/S-E3/S3 | 31 | 25 | 34 | 28 | 4DW92-42D | M | Y184EF | 1950*900*1150 | YDW34E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW41E3/S-E3/S3 | 37 | 30 | 41 | 33 | 4DW93-50D | M | Y184G | 1950*900*1150 | YDW41E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW50E3/S-E3/S3 | 45 | 36 | 50 | 40 | 4DX21-61D | M | Y184H | 2300*980*1200 | YDW50E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW62E3/S-E3/S3 | 56 | 45 | 62 | 50 | 4DX22-75D | M | Y224DS | 2300*980*1200 | YDW62E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW76E3/S-E3/S3 | 69 | 55 | 76 | 60 | 4DX23-90D | M | Y224E | 2450*980*1200 | YDW76E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW90E3/S-E3/S3 | 81 | 65 | 90 | 72 | 4110/125Z-11D | E | Y224F | 2520*1050*1390 | YDW90E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW118E3/S3 | 106 | 85 | 118 | 94 | CA4DF2-14D | E | Y274C | 2610*1100*1440 | YDW118E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW131E3/S3 | 119 | 95 | 131 | 105 | CA6DF2D-16D | E | Y274C | 2950*1100*1700 | YDW131E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW152E3/S3 | 138 | 110 | 152 | 121 | CA6DF2-18D | E | Y274D | 2950*1100*1700 | YDW152E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW179E3/S3 | 163 | 130 | 179 | 143 | CA6DF2-21D | E | Y274E | 3150*1130*1750 | YDW179E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW227E3/S3 | 206 | 165 | 227 | 182 | CA6DL1-27D | E | Y274G | 3650*1220*1950 | YDW227E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW275E3/S3 | 250 | 200 | 275 | 220 | CA6DL2-32D | E | Y274J | 3650*1220*1950 | YDW275E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW371E3/S3 | 338 | 270 | 371 | 297 | CA6DM2J-42D | E | Y4D | 4000*1450*2150 | YDW371E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW440E3/S3 | 400 | 320 | 440 | 352 | CA6DM3J-49D | E | Y4FS | 4140*1500*2200 | YDW440E3&S3 Technical Data-FAWDE-Yorking.pdf |
